Gyproc Gypsum Board
Saint-Gobain Gyproc created Gyproc Gypsum Board, a high-end interior building material, to meet the demands of contemporary construction. Made from high-purity natural gypsum, it provides superior sound and thermal insulation, a smooth finish, and outstanding fire resistance.
| Parameter | Value |
|---|---|
| Size | 1219mm x 1829mm |
| Density | 425 / m³ |
| Thermal Resistance | 0.078 (W/m²K) |
| Thermal Conductivity | 0.16 (W/m°K) |
| Weight | 6.5 Kgs / m² |
| Screw Retention Strength | 400 - 500 (N) |
| Transverse Direction | 180 (N) |
| Longitudinal Direction | 500 (N) |
| Edge | Taper edge along length, Square edge along width |
| Applicable Standard | IS 2095 (Part 1):2011 |

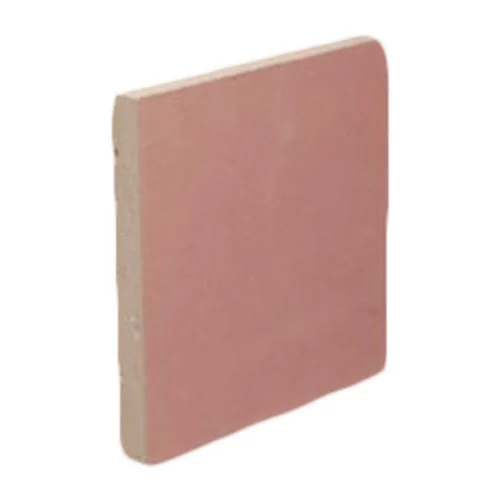

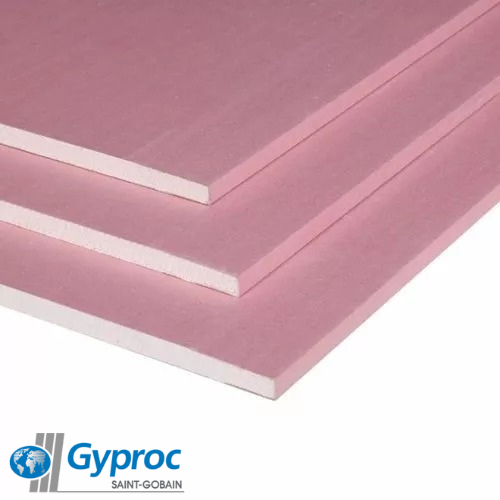

Gyproc Fireline Board
Gyproc® FireLine is a high-performance gypsum plasterboard that is specifically designed to meet high fire resistance requirements. It comes in thicknesses of 12.5 mm and 15 mm, with typical dimensions of 1200 mm in width and 2400–3000 mm in length. With brown paper on the back, the pink-faced paper facilitates on-site identification. Both tapered-edge and square-edge finishes are available.
| Composition: | Aerated Gypsum, Glass Fibers, Additives, Pink Color Paper Liner |
|---|---|
| Suitable For: | Interior Applications |
| Applications: | False Ceiling, Drywall Partitions and Wall Cladding |
| Size: | 6ft x 4ft, 8ft x 4ft |
| Thickness: | 12.5mm, 15mm |
| Available Brands: | Saint Gobain Gyproc, USG Boral |

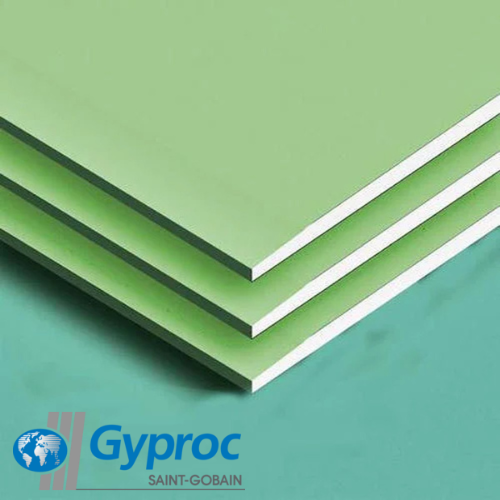

Gyproc Moisture Resitant Board
Gyproc Moisture Resistant Board is a specially engineered gypsum plasterboard that is intended to function well in environments that are exposed to high levels of moisture and humidity. Encased in green paper for easy identification, it is made with water-repellent additives in the core.
| Composition: | Aerated Gypsum, Repellent Additives, Moisture Resistant Paper Liner |
|---|---|
| Suitable For: | Interior Applications |
| Applications: | False Ceiling, Drywall Partitions and Wall Cladding |
| Size: | 6ft x 4ft, 8ft x 4ft |
| Thickness: | 12.5mm, 15mm |
| Available Brands: | Saint Gobain Gyproc, USG Boral |

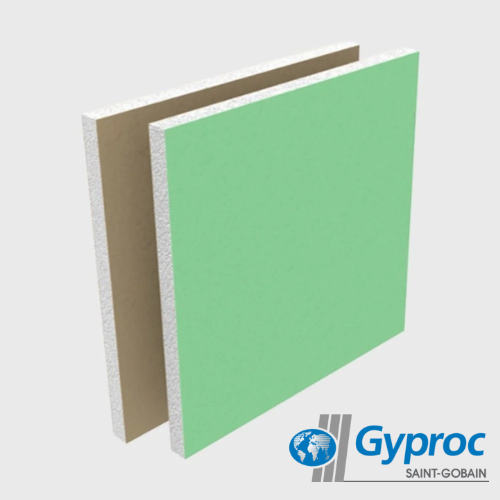

Gyproc Dampline Board
Gyproc DampLineTM is a gypsum plasterboard that has been specially formulated to improve interior damp resistance. Its core is made of moisture-repellent additives and is easily identifiable by its green-faced paper liners, which usually have a brown backing.
| Type | Damp‑resistant gypsum plasterboard with special moisture‑inhibiting additives |
| Standard Compliance | Manufactured per **EN 520** Type H2 damp‑resistant gypsum board standard |
| Thickness | Typically **12.5 mm** |
| Board Size | Approx. **6 ft × 4 ft** (≈ 1830 mm × 1220 mm) |
| Color | Green face paper (for damp resistance) |
| Typical Weight | ~ 8–9 kg per panel (estimate) |
| Edge Type | Tapered edge (TE) |
| Primary Features | Moisture-resistant core and face paper, suitable for internally humid areas |
| Primary Applications | Bathrooms, basements, kitchens, utility rooms—locations prone to dampness |
Gyproc Kool Board
A specially designed gypsum plasterboard with a metallic aluminum foil backing is called Gyproc Kool Board. When applied to ceilings, this foil reflects incoming solar heat, greatly lowering heat transfer into interior spaces and assisting in the maintenance of lower indoor temperatures. In the event of leaks or sporadic dampness, the foil side also provides extra moisture protection.
| Product Type | Gypsum wall‑board with aluminium foil on the back side |
| Thermal Function | Reflects solar heat to reduce interior temperature |
| Moisture Protection | Provides protection against moisture on the foil side |
| Applications | False ceilings in tropical, humid & hilly regions, warehouses, churches, etc. |
| Color | Off‑white face and metallic foil back |
| Thickness | Typically 12.5 mm gypsum board |
| Board Size | Approx. 6 ft × 4 ft (≈1830 × 1220 mm) |
| Primary Features | Heat reflectance, moisture barrier on foil side |

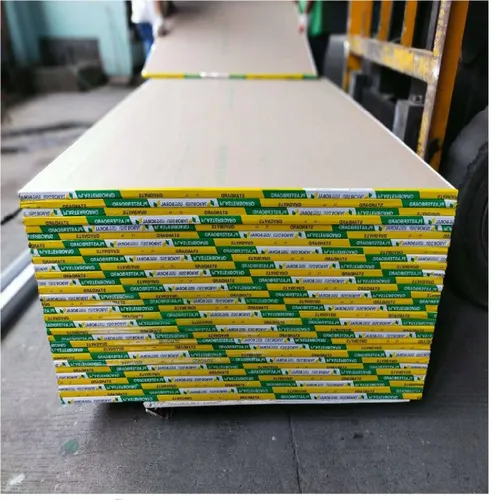

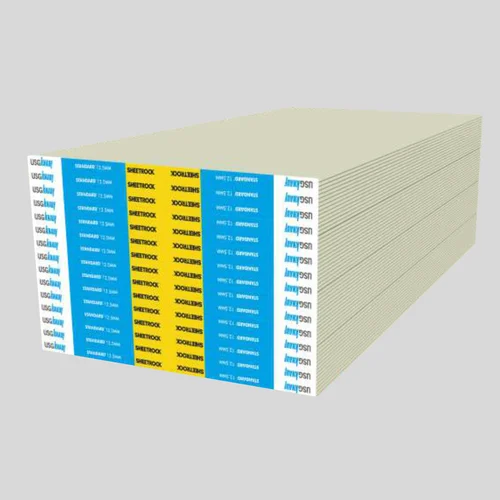

USG knauf Board
After being acquired by Knauf in 2019, USG now functions as a separate subsidiary, fusing Knauf's global experience and innovation with USG's Sheetrock® heritage. Gypsum boards are made by USG Knauf for use in technical interior applications, commercial buildings, and homes.
| Brand | USGKnauf (Sheetrock®) |
| Standards Compliance | ASTM C1396, IS 2095 (Part 1):2011, BS EN 520 |
| Thickness Options | 6.4 mm (¼″), 9.5 mm (⅜″), 12.5 mm, 15 mm |
| Panel Dimensions | Width: 1200 mm (48″); Length: up to ~2440 mm or 7‑14 ft (varies by region) |
| Weight (Nominal) | ≈1.2 lb/ft² (≈7.5 kg/m² for 12.5 mm in India); ≈11.5 kg/m² for 15 mm |
| Edge Profiles | Tapered Edge (TE) and Square Edge options |
| Appearance | Face/back paper—standard: ivory/grey; moisture‑resistant: green paper liners |
| Fire & Acoustic Performance | Suitable for fire-rated & acoustic systems; ASTM E84 Flame Spread ≤ 15, Smoke Developed ≤ 0 (for regular board in US) |
| VOC Certification | GREENGUARD Gold certified (low‑VOC) per CA 01350 |
| Core Structure | Uniform gypsum core with enhanced crystal bonds and anti‑sag features |
| Applications | Interior walls & ceilings, remodeling, residential & commercial non‑fire-rated environments |
| Optional Variants | Moisture Resistant (MoistBloc™), Firebloc™, EchoBloc (acoustic), Heatbloc™, Impact‑resistant boards |
